Rogue RC
Hobbywing XR10 Stock Spec ESC (80A)
Hobbywing XR10 Stock Spec ESC (80A)
Regular price
$259.00 NZD
Regular price
Sale price
$259.00 NZD
Unit price
/
per
Couldn't load pickup availability
- Zero timing firmware for ROAR races and other fair races.
- World's Smallest footprint & Lightweight ESC ever. "28g"
- Innovative Double-switch Design: Built-in Electronic Switch, long life, and high reliability saves space on the chassis + Switch w/ extended wire (option)
- Programming/Upgrading/ Data Reading Wirelessly: Integrated Data logger can record the maximum temperature of ESC and motor as well as the maximum RPM. WiFi Express Module or LCD Programming box can be used to check data easily in the pits. External Programming Port (EPP) is easy to connect and functions as a power port for an additional fan.
- Adjustable Throttle & Brake PWM Frequencies: Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
- Super Internal BEC: The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V the user to use various high voltage servos.
- Functions makes running your ESC safe with ESC and Motor overheat protection, low voltage cutoff throttle signal loss protection.

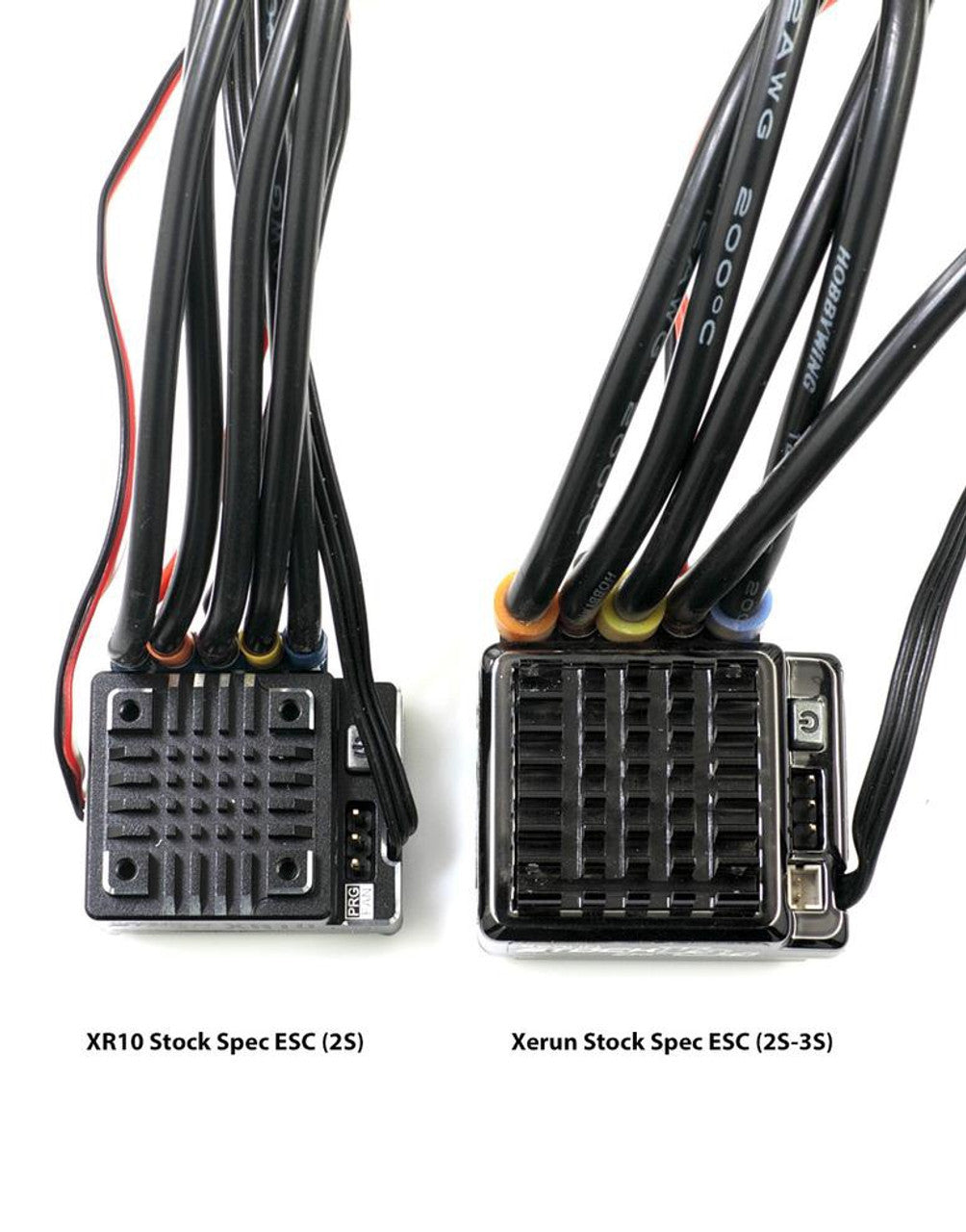

XR10 Stock Spec ESC XERUN XR10 Stock Spec
30112401 | 30112400 | |
Current | Continuous: 80A Burst: 380A |
Continuous: 100A
Burst: 600A
|
Battery | 5-7 cells NiMH/NiCd 2S LiPo |
4-9 cells NiMH/NiCd 2-3S LiPo |
Built-in BEC | 6V@3A (switch mode) | 6V@3A (linear mode) |
Motor Supported | Sensored and sensorless brushless motors | |
Suitable Motor | 3650 Motors 1/10 Touring Cars ≥10.5T, 1/10 Buggy≥13.5T |
3650 Motors
2S LiPo: 1/10 Touring Cars≥4.5T, 1/10th Buggies≥6.5T 3S LiPo: 1/10 Touring Cars≥6.5T, 1/10th Buggies≥10.5T |
Application | STOCK class of 1/10th Touring Car & Buggy Racing | 1/10,1/12 all competitions 1/10,1/8 rock crawler |
Cooling Fan | 5V - 7.4V (20x20x8mm) |
5V - 8.4V (25x25x10mm) |
Wires | 14AWG-200mm | 12AWG-200mm |
Size | 31.5x25.6x16.1mm | 37.5x31.0x32.0mm |
Weight** | 28g | 32.6g |
* For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan must be changed to 12V high voltage fan. ** Weight is w/o wires, cooling fan |
